AC Infinity's Ionboard S44 400 Watt Full Spectrum LED Grow Light
- Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.
- Specially formulated full-spectrum Samsung LM301B LEDs to achieve the highest growth rates in all plant stages.
- Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
- Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
- Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.
DESCRIPTION
Grow with confidence with this innovative LED grow light featuring algorithmically placed Samsung LM301B diodes for maximum plant yields. The proprietary driver allows for precise dimming control, and even integrates with our smart controllers for advanced features. The fanless unibody aluminum board design keeps the light cool and extends the diode's lifespan, while the IP-65 rated components maintain peak performance in high temperature and humidity grow environments. Comes equipped with metal bar and rope hangers, making it ideal for grow tents with reflective Mylar lining. As a part of the UIS™ platform of grow equipment and smart controllers, it works seamlessly with other devices to create your perfect grow environment.
OPTIMIZED LIGHTING
The LED light boasts an optimized ratio of white, red, and IR diodes from the Horticulture-Series Samsung LM301B, expertly placed to achieve uniform PAR map coverage and deep light penetration. This design helps optimize growth rates in all stages of plant development, from germination to flowering.
SMART CONTROLLING

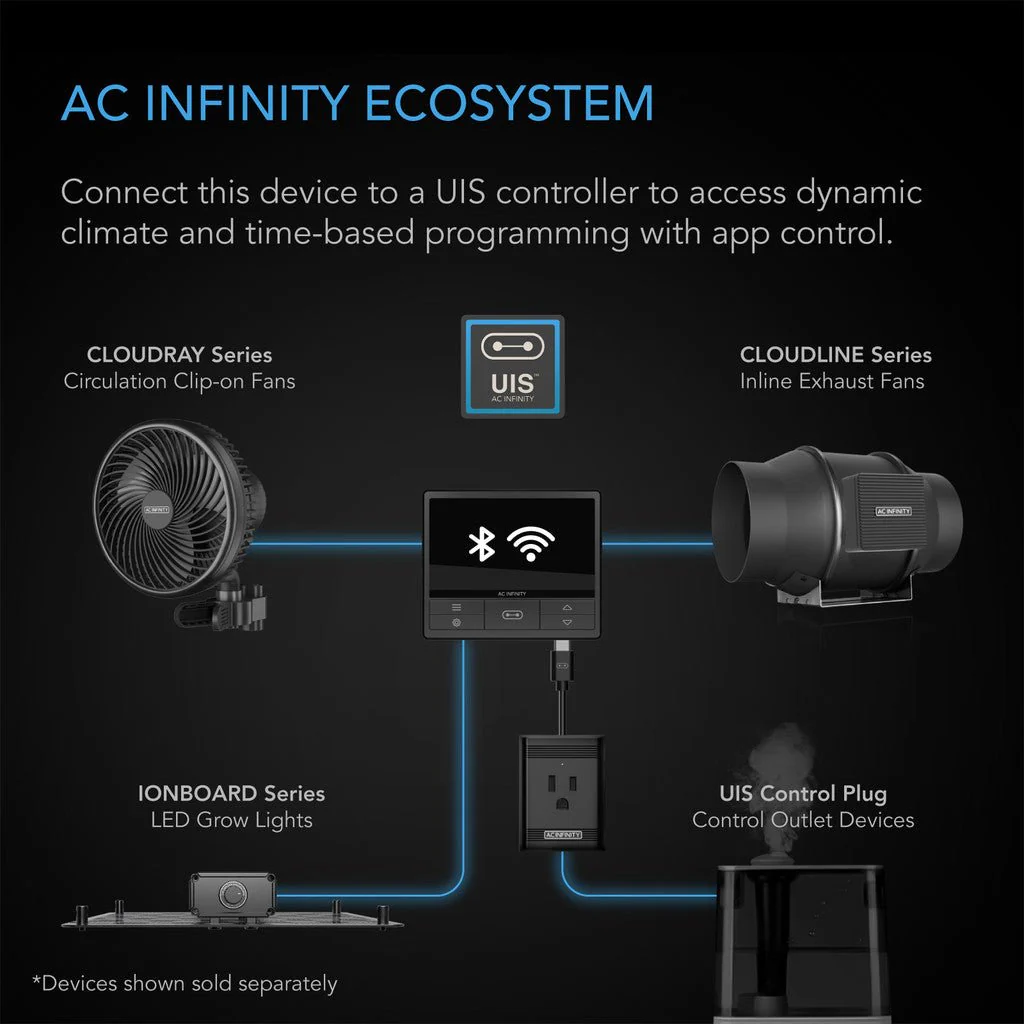

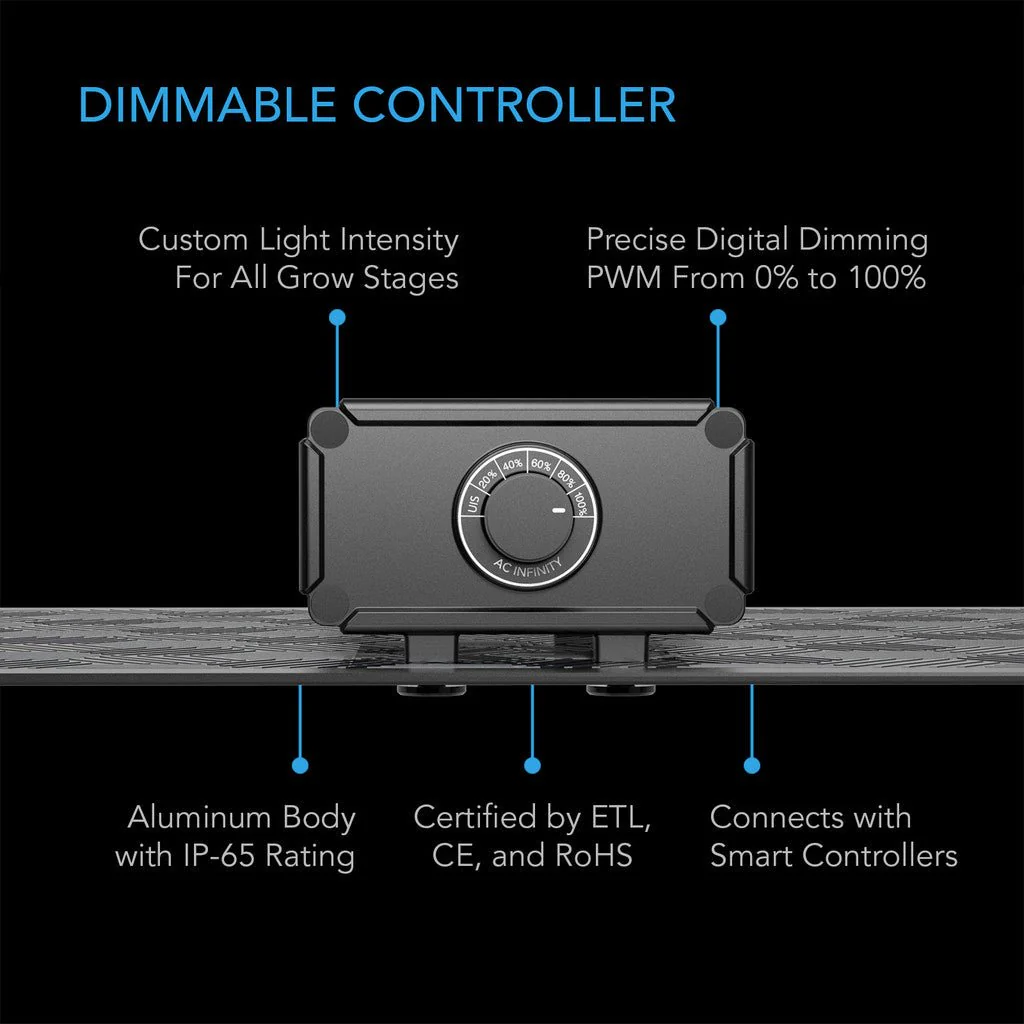

Enjoy complete control with the LED's proprietary driver, which enables smooth dimming from 0-100% in 20% increments, plus a port for connecting with our smart controllers for even more advanced features. Monitor and adjust grow cycles, set scheduling, and control the light from your smartphone app, all as part of a larger ecosystem of grow equipment working together to create the optimal environment.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBOARD S44 |
| Product Model | AC-IBS44 |
| UPC Code | 819137022546 |

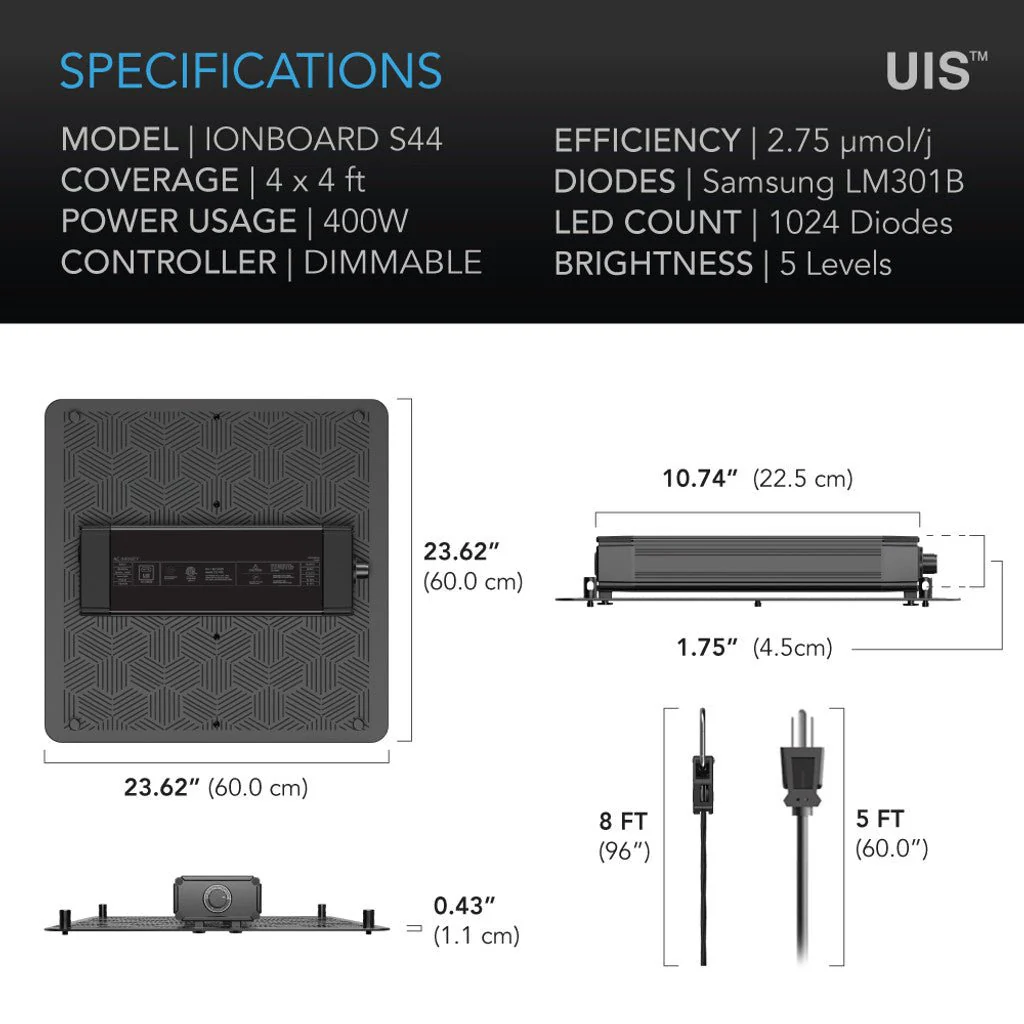

| Product and Mounting Dimensions | |
| Light Dimensions | 23.62 x 23.62 in. (60.0 x 60.0 cm) |
| LED Board Thickness | 0.43 in. (1.1 cm) |
| Driver Dimensions | 10.74 x 1.75 in. (22.5 x 4.5 cm) |
| Product Performance and Technical Specs | |
| Coverage | 4 x 4 ft. |
| Diodes | Samsung LM301B |
| LED Chip Count | 1024 |
| LED Driver | AC Infinity Proprietary Driver, Model GTS-100 |
| Efficiency | 2.75 µmol/j |
| PPFD | 1937 PPFD |
| Spectrum | 660nm, 730nm, 3000K, 5000K |
| Wattage | 400 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.60 A @ 120V | 1.80 A @ 240V | 1.56 A @ 277V |
| Controller | Digital Dimming Timer |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
Description
- Dimmable LED grow light designed with an optimized spectrum and diode positioning, to maximize plant yields.
- Specially formulated full-spectrum Samsung LM301B LEDs to achieve the highest growth rates in all plant stages.
- Algorithmically positioned diodes create the most uniform PAR map and the deepest canopy penetration.
- Dimmer enables 0 to 100% brightness. Can connect with our smart controllers to access grow cycles, scheduling, and app.
- Constructed on a unibody aluminum board and IP-65 rated for grow environments with higher humidity and heat.
DESCRIPTION
Grow with confidence with this innovative LED grow light featuring algorithmically placed Samsung LM301B diodes for maximum plant yields. The proprietary driver allows for precise dimming control, and even integrates with our smart controllers for advanced features. The fanless unibody aluminum board design keeps the light cool and extends the diode's lifespan, while the IP-65 rated components maintain peak performance in high temperature and humidity grow environments. Comes equipped with metal bar and rope hangers, making it ideal for grow tents with reflective Mylar lining. As a part of the UIS™ platform of grow equipment and smart controllers, it works seamlessly with other devices to create your perfect grow environment.
OPTIMIZED LIGHTING
The LED light boasts an optimized ratio of white, red, and IR diodes from the Horticulture-Series Samsung LM301B, expertly placed to achieve uniform PAR map coverage and deep light penetration. This design helps optimize growth rates in all stages of plant development, from germination to flowering.
SMART CONTROLLING
Enjoy complete control with the LED's proprietary driver, which enables smooth dimming from 0-100% in 20% increments, plus a port for connecting with our smart controllers for even more advanced features. Monitor and adjust grow cycles, set scheduling, and control the light from your smartphone app, all as part of a larger ecosystem of grow equipment working together to create the optimal environment.
| Product Identification | |
| Manufacturer | AC Infinity Inc. |
| Product Name | IONBOARD S44 |
| Product Model | AC-IBS44 |
| UPC Code | 819137022546 |
| Product and Mounting Dimensions | |
| Light Dimensions | 23.62 x 23.62 in. (60.0 x 60.0 cm) |
| LED Board Thickness | 0.43 in. (1.1 cm) |
| Driver Dimensions | 10.74 x 1.75 in. (22.5 x 4.5 cm) |
| Product Performance and Technical Specs | |
| Coverage | 4 x 4 ft. |
| Diodes | Samsung LM301B |
| LED Chip Count | 1024 |
| LED Driver | AC Infinity Proprietary Driver, Model GTS-100 |
| Efficiency | 2.75 µmol/j |
| PPFD | 1937 PPFD |
| Spectrum | 660nm, 730nm, 3000K, 5000K |
| Wattage | 400 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.60 A @ 120V | 1.80 A @ 240V | 1.56 A @ 277V |
| Controller | Digital Dimming Timer |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Life Expectancy | 50,000 Hours |
